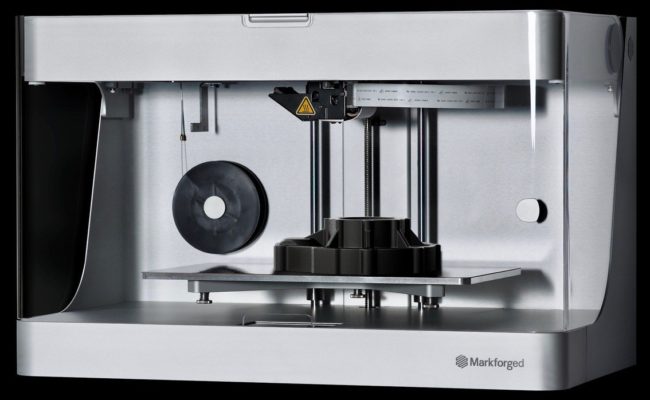

MARKFORGED MARK TWO

Desktop Carbon Fiber 3D Printer

An industrial 3D printer in a desktop form factor

The Markforged Mark Two is an industrial-grade carbon fiber 3D printer that can fit on your desk. The Markforged is the first company in the world to introduce a 3D printer capable of embedding continuous strand of carbon fiber, Kevlar®, and fiberglass into high-quality nylon called the Mark Two Enterprise. This 3D printer gives engineers and manufacturers the ability to manufacture lightweight components with the strength of aluminium.

HIGH-STRENGTH PRINTING

By reinforcing parts with composite fibre while 3D printing them, the Mark Two achieves unparalleled strength, stiffness and durability.

RANGE OF MATERIALS

In addition to printing Onyx the Mark Two can print in materials such as Carbon Fibre, Fibreglass, HSHT Fibreglass and Kevlar. Which helps in printing really strong composite parts.

SIMPLE TO USE

3D printing becomes easier with Markforged’s proprietary 3D printing software that comes with the Mark Two. With unique features like over-the-air updates, material usage tracking and out-of-material detection, this software takes 3D printing experience to the next level.

With the largest install base in South East Asia, Chemtron is one of the most established Markforged 3D printers distributor in the region.

For more product information, demonstration, and price inquiries

Fill out the form and we’ll get back to you as soon as possible.

Machine Specifications

Build Volume: 320 x 132 x 154 mm
Machine Footprint: 584 x 330 x 355 mm
Weight: 16 kg / 35 lbs
Printing Process: Continuous Fiber Reinforcement (CFR)
Print Bed: Precision Ground Composite
Printing Media: Composite Base Filaments, Continuous Fibers
Z Layer Resolution: 100 μm – 250 μm
Internal Part Geometry: Closed Cell Infill With Continuous Fiber Reinforcement

Applications

Create various industrial tools at faster rate with amazing cost savings

The Markforged Mark Two’s ability to produce functional parts, end components, prototypes as well as jigs, fixtures, tooling and moulds, makes it an ideal solution for engineering and manufacturing applications.

End Effectors

Typical Machined Cost – $285.61
Markforged 3D Printed Cost – $9.45
Savings – 97%
Soft Jaws

Typical Machined Cost – $ 721.70
Markforged 3D Printed Cost – $ 116.04
Savings – 84%
Welding Fixtures

Typical Machined Cost – $ 1050.82
Markforged 3D Printed Cost – $ 85.92
Savings – 91%
CMM Fixtures

Typical Machined Cost – $ 662.10
Markforged 3D Printed Cost – $ 36.03
Savings – 95%
Assembly Jig

Typical Machined Cost – $ 436.50
Markforged 3D Printed Cost – $ 8.22
Savings – 98%

The Markforged Mark Two is professionally-engineered using high-quality components and advanced cloud-based print software Eiger for smooth operations. The Mark Two features two extruders and uses Composite Filament Fabrication (CFF) 3D printing technology. The first printhead is designed to create nylon or onyx parts, and the other one is a revolutionary new composite printhead that continuously adds fiber composite material to reinforce your print. Mark Two allows users to produce parts with greater stiffness and strength up to twice as strong as ABS. The parts printed on this carbon fiber 3D printer can tolerate the heat up to approx 145° C. With Mark Two, you can also print white nylon, a non-abrasive engineering thermoplastic, ideal for non-scratching parts or work holding, and printed parts for repeated handling.

Chemtron is the longest, most experienced authorized reseller of Markforged’s Onyx, Carbon Fiber and Metal 3D printers in Singapore, Malaysia and Indonesia. We provide the full range of the Markforged 3D printing System to customers in the South East Asia region with the best local sales and after sales technical support.

Download Full Overview

Interested in learning more about Markforged desktop 3D Printers?

Fill out this form and we’ll give you an overview of 3D printing technology, discuss potential applications, and help you determine where 3D printing fits in your business.
