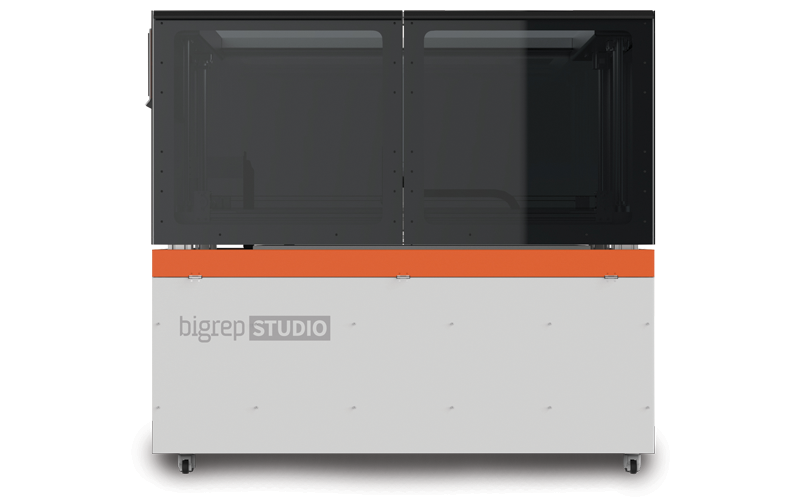

AFFORDABLE 3D PRINTING AT LARGE SCALE
With the BigRep Studio, we introduce a new dimension of large-scale 3D printing. The print volume of 500mm x 1000mm x 500mm provides space for large objects, while also enabling high precision and faster printing. The size of the BigRep Studio is optimal for setting up the printer in almost every location.
FAST & ACCURATE
THE NEW DUAL EXTRUDER
Print conventional materials, BigRep high temperature filaments as well as new flexible materials with speed & precision.
QUICK & SIMPLE SETUP
THE COMPACT SIZE
The all new BigRep Studio fits through a standard home door by disassembling the two halves of the machine, or through a standard office door fully assembled. Its reduced weight allows for easier transport and installation.
THE USER INTERFACE
New intuitive user interface on multi touch enabled screen, enabling lots of new features as remote load and check print progress via webcam, resume print after power failure and many more.
THE DESIGN CONCEPT
The print bed is raised for an ergonomic working height, at the same time creating filament storage space. Closed side-wall housing for increased safety in educational environments, filament guides inside the machine and fully opening sliding doors for best access to the print bed.
|Build volume||x500 y1000 z500 (mm)|
|Print speed||Up to 140 mm/s at 0.1 mm layer height|
|Acceleration||Up to 600 mm/s²|
|Layer height||0,1 – 0,4 mm|
(each equipped with 0.6mm nozzle)
|Printing technology||FFF- Fused-Filament-Fabrication (FDM)|
|Certified materials||BigRep PLA, BigRep PRO HT, BigRep PRO HS, BigRep PETG
flexible materials to be released soon
